Rock Krawler TJ35XFSA-TT 3.5" X-Factor Short Arm Lift Kit for TJ Jeep Wrangler

Manufacturer: Rock Krawler
SKU: RKR-TJ35XFSA-TT
$3,100.00

This Rock Krawler X-Factor suspension kit is a balls-to-the-wall short arm kit for your Jeep Wrangler.  It's a complete bolt-in solution that gives 3.5" of lift and improves both on-road and off-road performance.  Get your flex on!

System Benefits:

  • Complete Bolt In System
  • Excellent Highway Ride and Handling
  • Improved Off-Road Ability
  • Caster Adjustability Through Front Lower Control Arms
  • Pinion Angle Correcting Double Adjustable Rear Upper Arms
  • In Vehicle Adjustable Front Upper Arms
  • Front Pro Sway Bar Disconnects
  • Long Travel Functional Multi Rate Coil Springs
  • RRD Spec Twin Tube Shocks
  • Allows for up to 33 inch Tires (OEM Fenders)
  • Allows for up to 35 inch Tires (Flat Fenders)
  • Allows for up to 37 inch Tires (High Line Fenders)
  • Abuse Proof Lifetime Warranty on All Hard Parts
  • Upgradeable to Any Other System

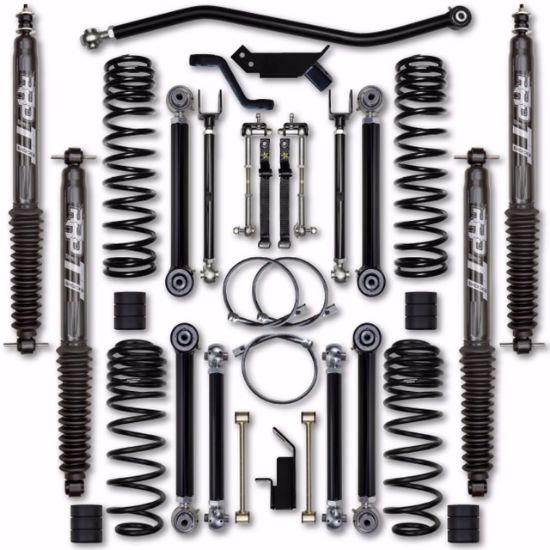

System Includes:

  • 4x   Long travel functional multi rate coil springs
  • 2x   11.6 inch Travel RRD Spec Twin Tube Front Shocks (Collapsed Length: 16.2 inch)
  • 2x   10.8 inch Travel RRD Spec Twin Tube Rear Shocks (Collapsed Length: 16 inch)
  • 1x   Front high misalignment/adjustable track bar
  • 4x   Adjustable lower control arms
  • 4x   Double adjustable upper control arms
  • 2x   Pro adjustable front sway bar disconnects
  • 3x   Long travel stainless steel brake lines
  • 2x   Rear extended sway bar links
  • 2x   Front sway bar link straps
  • 1x   Front track bar relocation bracket
  • 1x   Drop pitman arm
  • 1x   Rear track bar relocation bracket made from 3/16 inch laser cut steel

Fitment:

  • 1997-2006 Jeep Wrangler

Notes:

  • Includes all hardware and detailed instructions.
  • Requires a transfer case drop kit, or a C.V. Driveshaft Conversion, or a SYE with C.V. Driveshaft Conversion.
  • 2003 TJ's equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel.
  • Choose your bump stop lengths after you choose your wheel/tire and fender combination.
  • Typical wheel fitment for a 12.5 wide tire is a 15 x 8 with 3 3/4 inch of backspacing.
Products specifications
Attribute name Attribute value
Fitment Jeep TJ Wrangler (1997-2006)
